Bafang BBSHD Vs BBS02 - Which Is The Best One For You?

Written by
Last Updated on November 21 2021 by Danica
Editor's Choice
Bicycle Conversion Kit Bafang BBSHD 1000W Mid Motor
Value for Money
Bafang BBS02 Mid Drive Motor 48V 750W Electric Bicycle Conversion Kit
Product
Product
Bicycle Conversion Kit Bafang BBSHD 1000W Mid Motor
Bafang BBS02 Mid Drive Motor 48V 750W Electric Bicycle Conversion Kit
Size
Size
42T - 68mm
42T 68MM
Frame Material
Frame Material
Carbon Fibre
Carbon Fibre
Motor
Motor
48V 1000W
48V 750W
Brake Type
Brake Type
E-brake
E-brake
Speed Sensor
Speed Sensor
Yes
Yes
Gear Sensor
Gear Sensor
Yes
Yes
Features
Features
17.5Ah Rear rack battery, bluetooth function, Easy to Install, Two riding mode,
Easy to install, Universal Compatibility
Display
Display
LCD display
LCD display
Suitable For
Suitable For
Mountain bike, Road bike, Commuter bike, Fat tyre bike
Commuter bike, Mountain bike, Road bike
Product Weight
Product Weight
6.04 kg
6.04 kg

Our Guide To The Bafang BBSHD Vs BBS02 Bike Conversion Kits

Short On Time?

Our Recommended The Best Bafang Conversion Kit Is The BBSHD Bafang Electric Conversion Kit!

Editor's Choice
Electric Bike Motor Bicycle Conversion Kit Bafang BBSHD 1000W Mid Motor Ebike Drive System
  • [Shipping & Warranty] --- Shipped by a way that the DDP(Delivered Duty Paid) service is included, usually 12-20 days deliver to most of EU address(Except islands). 1 year warranty and provide technical support & after-sales service in the Netherlands. 24-hour online service.
  • [Easy Installation] --- Can be successfully installed into an electric bicycle in just a few time by only a few tools which can remove the crankset and the center shaft, as well as tools for installing this mid-drive motor.
  • [Standard JIS] --- Fit a standard JIS 68 - 73 mm/ 100 mm/ 120 mm bottom bracket (installing extra parts Gaskets as gifts), please see the installation image carefully. Suitable for mountain bike, road bike, commuter bike, fat tire bike. NOT recommended to apply this motor to bikes with carbon fiber frame in case of damaging the frame.
  • [Two riding mode] --- Electric bikes & pedal bicycle, faster traffic & physical exercise can be achieved at the same time. A wonderful choice for cycling enthusiasts and those who want faster traffic to transport or travel. This 1000W motor is from the Bafang BBSHD series, providing powerful and ideal power.

Choosing the right bike conversion kit for your electric bike is very important as it determines the power and whole quality of your electric bike.

Bafang is pretty well known for creating some easy to use reliable bike conversion kits, but with their newer BBSHD kit than then BBS02 you might be wondering which kit is better to use with your electric bike and if it's worth the extra money.

Below is our guide we will cover the main features of each bike conversion kit, the problems with the BBS02 bike conversion kit as well as the similarities and differences between each kit and a conclusion to which kit you should choose.

Main Features Of The Bafang BBS02 Conversion Kit

First of all, before we get into comparing these two conversion kits in more detail, let's discuss the main features of this older kit to see what you get for your money. The brushless powered mid-drive motor power unit comes with a 40-59V power and has a 25A current with a max speed of 25mph.

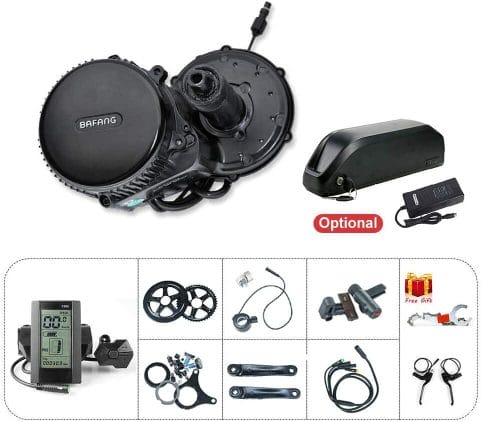

The Bafang BBS02 Conversion Kit 1

The estimated torque of this conversion kit is 120-130Nm and it has an efficient motor wattage between 750W and 1470W. Total speed of the unit can go between 110-130RPM. The kit includes all the necessary parts for installation such as its controller, brake lever, thumb throttle and speed sensor except does not include the battery, it weighs around 13 pounds.

Problems With The Bafang BBS02 Kit

Although the Bafang BBS02 has been around for a while and was one of the most popular conversion kits for electric bikes it did have some problems, hence why the upgraded BBSHD conversion kit was brought out shortly after.

The Bafang BBS02 Conversion Kit 2

The main problem with the BBS02 kit is its 9 MOSFET controller which often was combined with battery failure in the kit or how the bike is ridden, it's controller does not have good power control which can lead to it overheating and battery failure, especially if the user is putting more strain on the bike by using the wrong gear for example at a high power level.

The Bafang BBS02 Conversion Kit 3

If you use this conversion kit you would need to upgrade the firmware and stick to a lower grade battery choice such as 48V rather than a 52V.

Comes With All Necessary Accessories

Universal Compatible

Compatiable With Commuter Bike, Mountain Bike, Road Bike And So On.

Designed With 68-73Mm Or 68-120Mm Bottom Bracket.

Easy To Install

Main Features Of The BBSHD Conversion Kit

The BBSH conversion kit comes with a Mid Drive motors design as has a 40-59V power with a single speed of up to 30mph.

The Bafang BBSHD Conversion Kit 1

Its current conversion kit is rated at 30A and it has a max wattage of 1000W/1764W weighing around 16 pounds. Total torque peak power is rated at 160Nm and it has a speed ranging between 130-150rpm.

Shipped by a way that the DDP(Delivered Duty Paid) service is included

1-year warranty

24-hour online service.

Easy Installation

Fit a standard JIS 68 - 73 mm/ 100 mm/ 120 mm bottom bracket

Suitable for mountain bike, road bike, commuter bike, fat tire bike

Two riding mode

Bafang BBSHD Vs BBS02 Conversion Kit - Which Is Better?

Now we know the main specs of each conversion kit we can get into studying the similarities and differences of each conversion kit to see which is best for you.

The Bafang BBSHD Conversion Kit 4

Similarities

At a glance, the conversion of the mid-drive motor kits are very similar, they can both be used PAS as regular riders or throttle and both operate with brushless quiet motors. Both can also reach a respective speed of over 25mph.

  • Top speeds of over 25mph.
  • Used on PAS or throttle.
  • Installed the same way.
  • Mid-drive motors.

Differences

The main difference between both electric bike conversion kits is the difference in power, the BBSHD motors model has a peak wattage output of 1,764 watts while the BBS02 has a peak wattage output of 1,470 Watts with 52V batteries.

The Bafang BBS02 Conversion Kit 5

In terms of the design, the BBSHD has a 30 amp 12 MOSFET controller which was upgraded and uses a higher torque power than the BBS02 of up to 160Nm making it it better kit for going faster and packing more power. Both kits also have different chainring compatibility's.

  • Different peak wattage.
  • Chainrings.
  • Upgraded controllers.

Bafang BBSHD

Advantages

  • High wattage power.
  • Upgraded controller with better heat dissipation.
  • High speed.

Disadvantages

  • Expensive.
The Bafang BBSHD Conversion Kit 3

Bafang BBS02

Advantages

  • Still, high torque compared to other conversion kits.
  • Lightweight.
  • High speed.

Disadvantages

  • Less power than the BBSHD.
  • Controller issues.
The Bafang BBS02 Conversion Kit 4

Conclusion - Which E-Bike Conversion Kit Is Best For Me?

To conclude, if you are after more power then the BBSHD is a much better choice as it has more torque and a higher speed for off terrain use and hill climbing. However, if you will mostly be riding on flat terrain then the BBS02 is also a more budget-friendly choice and you won't notice much difference in the power, you do have a lower end controller though.

The Bafang BBSHD Conversion Kit 1

What To Look For In a Bafang E-Bike Conversion Kit (Our Buying Guide)

After comparing both the BBS02 and BBSHD conversion kits it's a good idea to get a little more clued up on what you need to look for inside of your conversion kit as well as how to install one properly if you first time.

Benefits Of Choosing An E-Bike Conversion Kit

E-bike conversion kits can be a little complicated as you have to understand motor efficiency, battery voltage and watts difference, but finding the right conversion kit for you can be much more rewarding than buying an electric bike upfront with many advantages we will list below.

  • You get to use your bike - One of the main advantages to installing an e-bike conversion kit on your bike is that you get to stick with your favourite bike which you find comfortable to ride with, as long as your bike is sturdy and has good brakes you should be good to go!
  • It saves money - Although electric bike conversion kits can become pretty expensive once you add in the battery they will save you a few hundred £100 than buying an electric bike upfront.
  • You have more space - Rather than buying another bike, converting your older one allows you to save on space, having a conversion kit on your original bike will not make it any bigger, but maybe slightly heavier.
  • It can be customised - The best part about e-bike conversion kits is that you can pick and choose what you want in your kit, choosing assistance, sensors, controllers and accessories you can make the exact type of electric bike that you want.
  • You can bring an old e-bike back to life - If the motor or batter has failed on your old electric bike you can bring it back to life by installing a new conversion kit rather than wasting a whole e-bike.
  • It's fun - For anyone who likes a bit of DIY and challenges then installing your electric bike conversion kit can be a pretty fun task.
The Bafang BBS02 Conversion Kit 6

Drawbacks Of An E-Bike Conversion Kit

Although there are many advantages to an e-bike conversion kit there are also some negatives to consider before you invest in one.

  • It might not be suitable - You have to ensure that frame of your bike will be able to handle the weight and power of an e-bike conversion kit, some bikes are not durable enough for this.
  • You might need a professional - Installing an e-bike conversion kit is not as simple as it seems, you need to have a bit of background knowledge to be able to do it, if not you might have to pay out for a professional.
  • They don't have long term durability - Compared to a standard premade e-bike these conversion kits do not have as long term durability as this is not what they were designed for.
Value for Money
Bafang BBS02 Mid Drive Motor 48V 750W Electric Bicycle/Bike Ebike Conversion Kit c965-52t
  • Comes With All Necessary Accessories:Mid-Drive Motor,Brake Lever,Thumb Throttle,Chainring Wheel,Crank,Lcd Display,Speed Sensor And Magnets,1T4 Wire,Nuts
  • Universal Compatible:Bafang Bbs01B/Bbs02B/Bbhd Mid Drive Motor Kit Is Compatiable With Commuter Bike,Mountain Bike,Road Bike And So On. This Kit Is Designed To All Bikes With 68-73Mm Or 68-120Mm Bottom Bracket. Not Recommended To Apply This Motor To Bikes With Carbon Fiber Frame In Case Of Damaging The Frame.
  • Easy To Install: Can Be Successfully Installed Into An Electric Bicycle In Just A Few Time By Only A Few Tools Which Can Remove The Crankset And The Center Shaft, As Well As Tools For Installing This Mid-Drive Motor.
  • Electric Bikes & Pedal Bicycle, Faster Traffic & Physical Exercise Can Be Achieved At The Same Time. A Not Bad Choice For Cycling Enthusiasts And Those Who Do Not Want Too Fast Traffic To Transport Or Travel.

Features To Consider In An E-Bike Conversion Kit

Choosing the right kind of e-bike conversion kit can be a little overwhelming with all their different features, we have listed the most important ones for you to watch out for in your kit below.

  • Type of motor power - When choosing your e-bike conversion kit you should ensure that the types of motor you choose are brushless as they are much quieter and give high performance.
  • Motor wattage - Always ensure that your motor is high enough in power for your needs, if you need a road legal motor then pick a 250W motor in your kit, however mountain biking or trail riding 750W motors might be more desirable due to the extra power.
  • Motor position - The excellent mid-drive motors we reviewed above both come with a mid-drive position which gives ultimate power and balanced assistance when riding due to its more natural position. You will also find the front hub and rear hub motor kits, front hubs are cheaper but easy to do although they give more unnatural assistance, rear hubs are great for converting commuter bikes.
  • Components - Your electric bike conversion kit will come with a variety of different components, from controllers to chains. For example, the BBSHD motors kit comes with brake levers, an LCD, throttle, crank wheel, chains, speed sensors and even headlights. The amount of components you have the better value for money your kit is.
  • Ease of installation - Make sure your e-bike is easy to install with clear instructions, brands such as Bafang are well known to have easy installation for all their conversion kits and even offer video installation to make the process more simple.
  • Battery - Some e-bike conversion kits include a battery while others require you to purchase it separately, you should account for this extra cost and also ensure that the battery selection of the conversion kit matches your motor power to make sure there is enough range.
  • Warranty - Always make sure your e-bike conversion kit has a warranty on the motor and its components to ensure you are choosing a reliable model.
The Bafang BBSHD Conversion Kit 3

How To Install a Bafang E-Bike Mid-Drive Conversion Kit

Installing a mid-drive conversion kit doesn't have to be hard as long as you have the right instructions and guidelines to follow.

We have listed a step by step guide below for installing your Bafang mid-drive conversion kit below.

  1. First of all, remove the pedals from your bike using the pedal wrench then take off the crank arm bolt with an 8mm Allen wrench. Take off the crank arm entirely using the right tool for your bike.
  2. Now remove the chain of your bike and front derailleur (if your bike has one) then use a bottom bracket removal tool to take off the bottom bracket.
  3. If you have mechanical brakes now take off the front brake cable and remove the brake, shift and front assembly.
  4. Next, slide your Bafang motor into the bottom bracket shell on your bike and secure it with a Y-shaped motor bracket. Install M6 bolts onto your bike using a 5mm Allen wrench.
  5. Screw the grey M33 lock nut on exposed threads making sure the flat side is facing the bike and arrow is clockwise, tighten the locknut afterwards as well as the M6 locknuts.
  6. Install and tighten the outer black M33 locknut then assemble the speed sensor into its mount.
  7. Attach the speed sensor into the chainstay and install the magnet onto the wheel spoke, align the magnet with the speed sensor and secure it with zip ties. Attach the speed sensor with the speed pedometer.
  8. Connect your wiring harness into the motor assembly and install the LCD on the handlebars, at this stage you can slide the brake lever onto the handlebar too and tighten with a 5mm Allen wrench.
  9. Take your brake cable and reinstall it, you can slide the throttle on too then connect it all to the wiring harness which should be colour coded.
  10. Now install the chainrings using the right bolts and tighten, use the supplied screws and install the crank arms with an 8mm wrench.
  11. Reinstall the pedals on each side and reinstall the chain for the bike.
  12. Take your battery and remove the water bottle mount, install the battery mount instead where this was and plug the battery mount into the motor leads.
  13. Slide the battery onto the mount and lock it into place turning the key.

Which Is The Best Bafang Electric Bike Conversion Kit?

To conclude, we suggest choosing the BBSHD Bafang mid-drive motor conversion kit over the BBS02 kit thanks to its updated design which eliminates the issue of the controller and has much high power for flat terrain and rocky terrain use.

Editor's Choice
Electric Bike Motor Bicycle Conversion Kit Bafang BBSHD 1000W Mid Motor Ebike Drive System
  • [Shipping & Warranty] --- Shipped by a way that the DDP(Delivered Duty Paid) service is included, usually 12-20 days deliver to most of EU address(Except islands). 1 year warranty and provide technical support & after-sales service in the Netherlands. 24-hour online service.
  • [Easy Installation] --- Can be successfully installed into an electric bicycle in just a few time by only a few tools which can remove the crankset and the center shaft, as well as tools for installing this mid-drive motor.
  • [Standard JIS] --- Fit a standard JIS 68 - 73 mm/ 100 mm/ 120 mm bottom bracket (installing extra parts Gaskets as gifts), please see the installation image carefully. Suitable for mountain bike, road bike, commuter bike, fat tire bike. NOT recommended to apply this motor to bikes with carbon fiber frame in case of damaging the frame.
  • [Two riding mode] --- Electric bikes & pedal bicycle, faster traffic & physical exercise can be achieved at the same time. A wonderful choice for cycling enthusiasts and those who want faster traffic to transport or travel. This 1000W motor is from the Bafang BBSHD series, providing powerful and ideal power.
